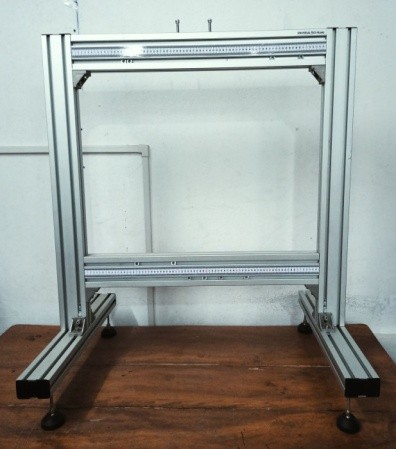

Universal Test Frames

A universal test frame is the main supporting structure for structural experiments.

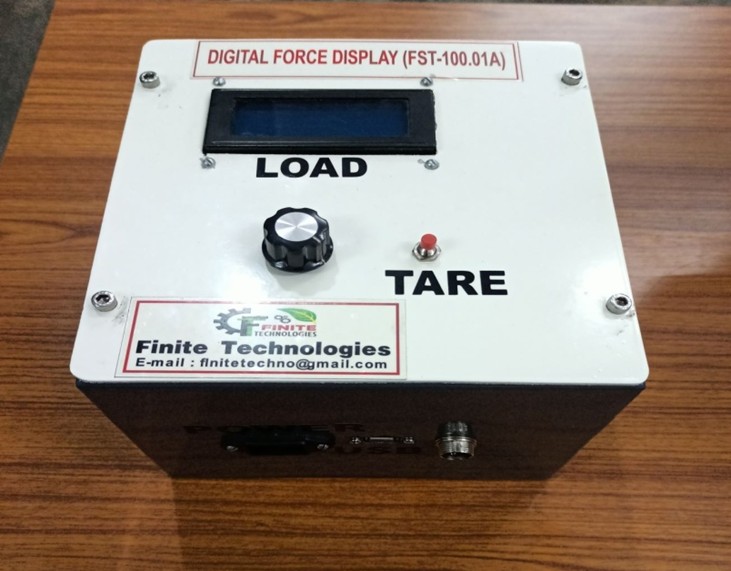

Digital Force Display (FST-100.01A)

A Digital Force Display (FST-100.01A) is a device used to measure and display applied load digitally.

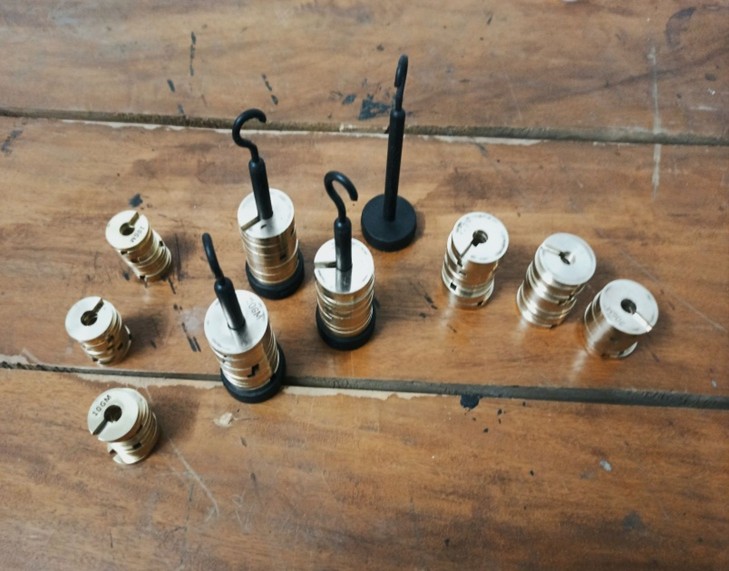

Loads with Load Holder

The loads with load holder are used to apply known loads on beams and structures.

Bending Moment Apparatus (Fixed Span) (FST-102A)

A Bending Moment Apparatus (Fixed Span) (FST-102A) is used to study bending moment distribution in beams with fixed supports.

Bending Moment Apparatus (Variable Span) (FST-102A)

A Bending Moment Apparatus (Variable Span) (FST-102A) is used to study bending moments in beams with adjustable span length.

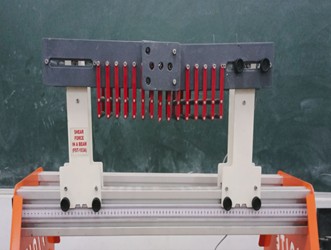

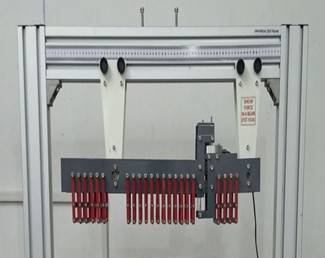

Shear Force Apparatus (Fixed Span) (FST-103A)

A Shear Force Apparatus (Fixed Span) (FST-103A) is used to determine shear force distribution in fixed span beams.

Shear Force Apparatus (Variable Span) (FST-103A)

A Shear Force Apparatus (Variable Span) (FST-103A) is used to study shear force in beams of different spans.

Deflection of Beams and Cantilevers Apparatus (FST-101A)

A Deflection of Beams and Cantilevers Apparatus (FST-101A) is used to measure deflection of beams and cantilevers under load.

Unsymmetrical Bending and Shear Centre Apparatus (FST-104A)

An Unsymmetrical Bending and Shear Centre Apparatus (FST-104A) is used to study unsymmetrical bending of beams and determine shear centre location.

Buckling of Struts Apparatus (FST-123A)

A Buckling of Struts Apparatus (FST-123A) is used to study buckling behaviour of columns.

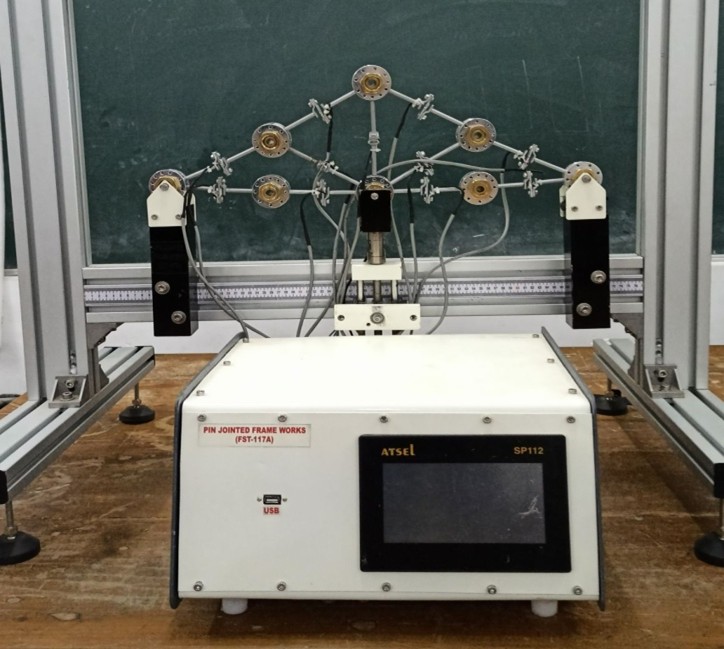

Pin Jointed Framework Apparatus (FST-117A)

A Pin Jointed Framework Apparatus (FST-117A) is used to analyse forces in pin-jointed trusses and Verifies method of joints and sections.
